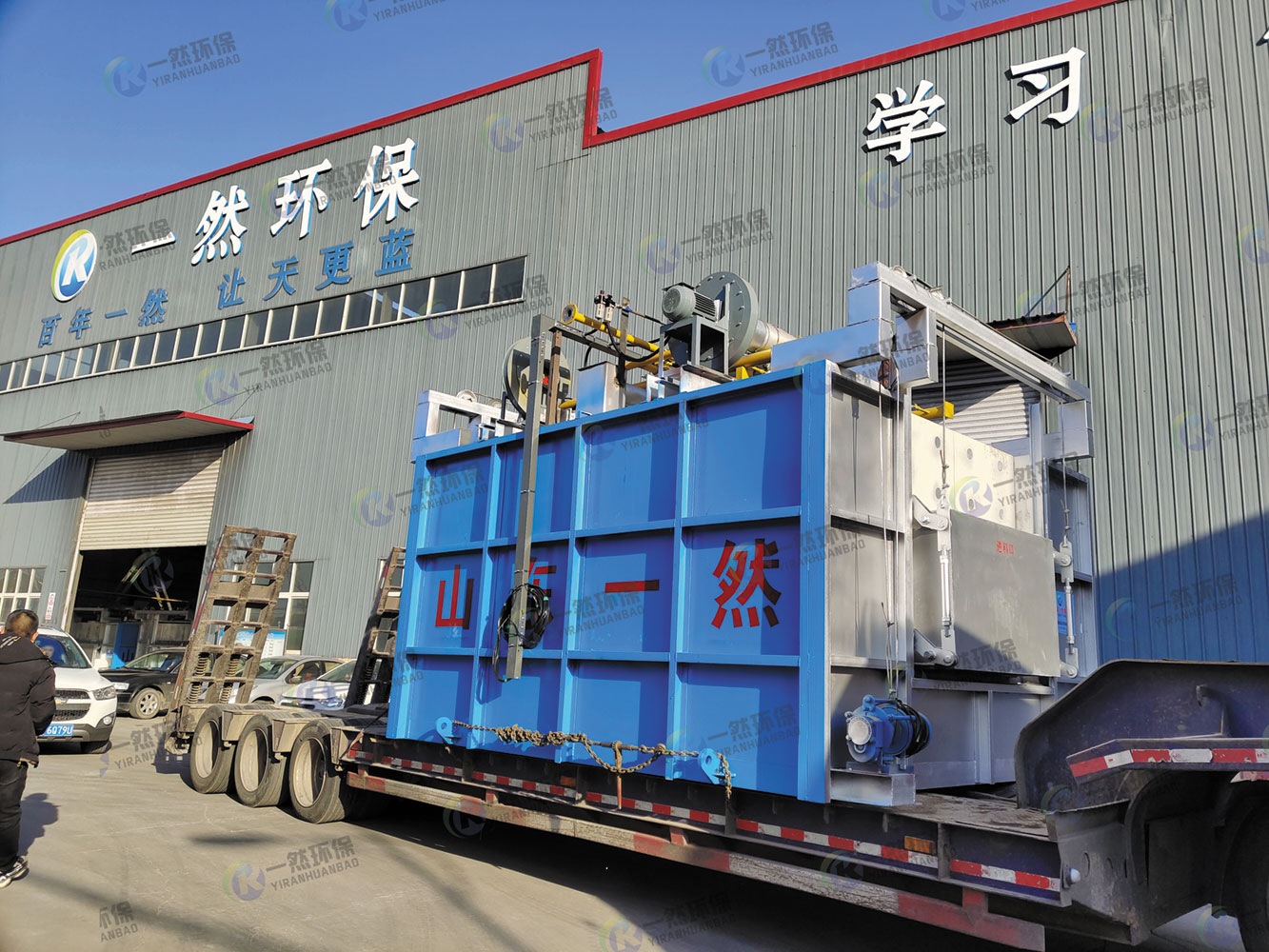

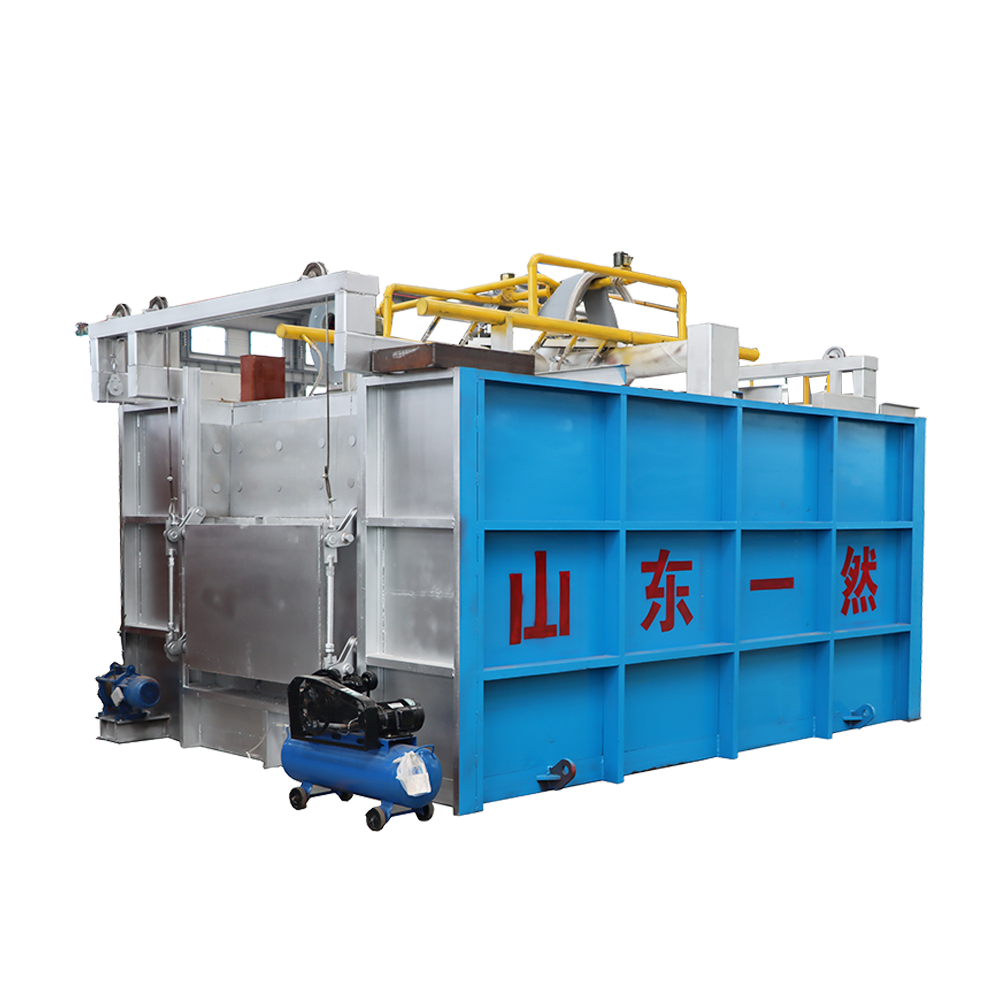

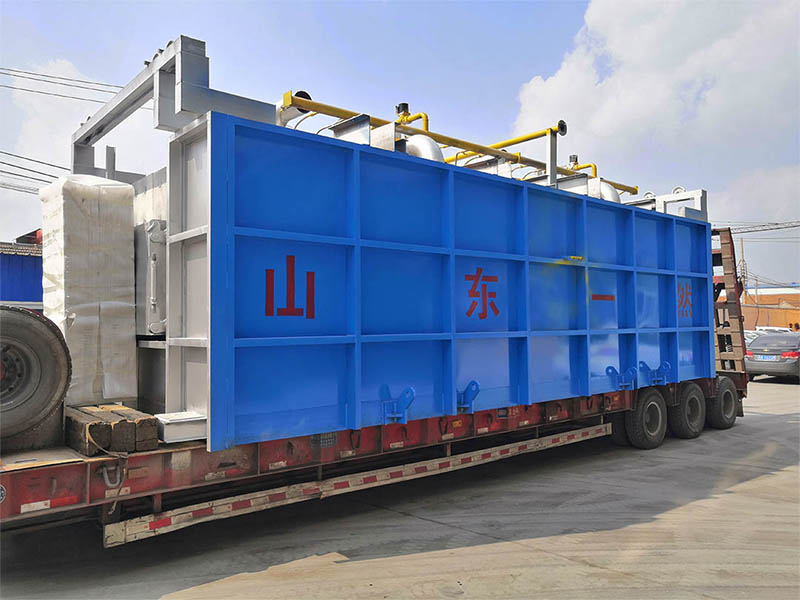

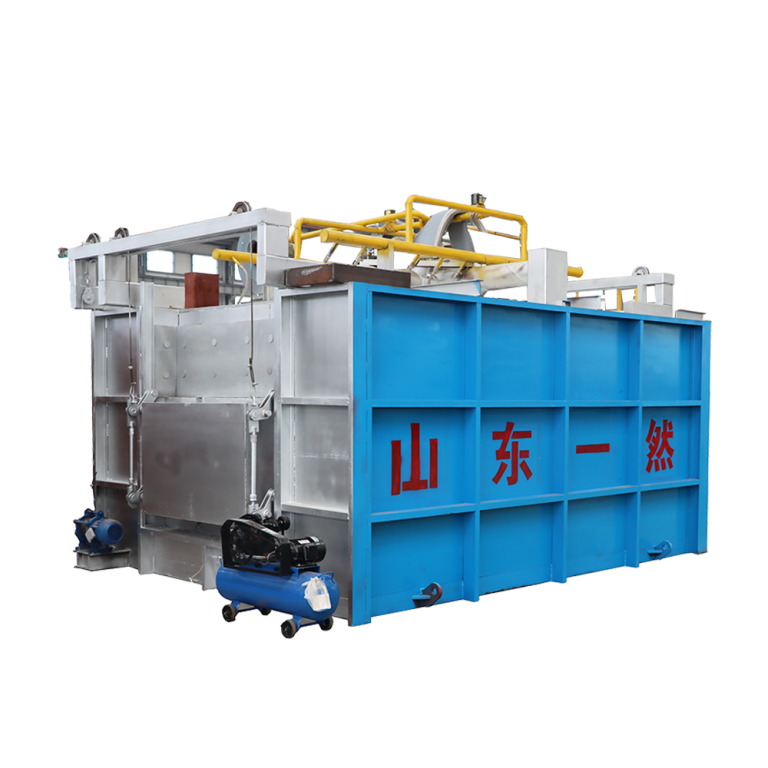

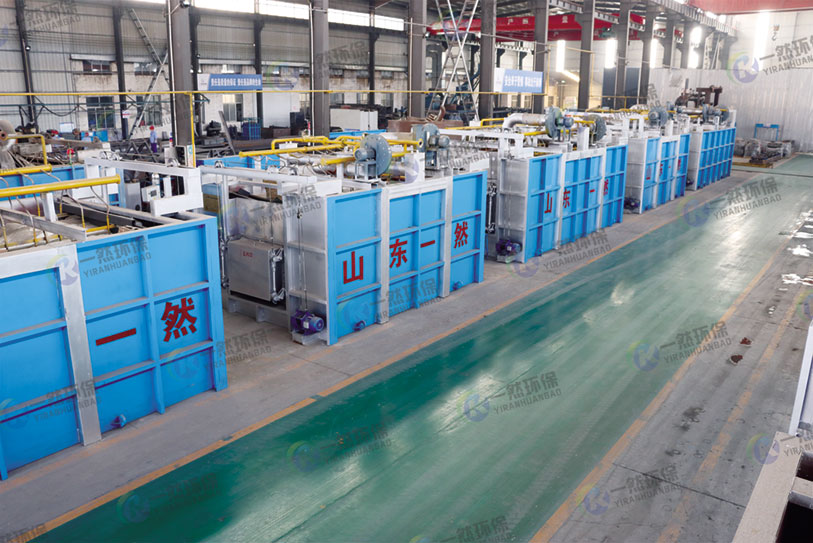

Yiran natural gas through type forging heating furnace adopts wall regenerative combustion technology, featuring energy conservation, environmental protection, safety, reliability, long service life and high cost performance; The air preheater of the through type forging heating furnace can preheat the combustion supporting air, with obvious energy-saving effect; The flat flame high speed adjustable burner is adopted, with stable combustion, uniform furnace temperature, PLC intelligent control of air fuel ratio, thermal insulation and combustion safety, energy conservation and environmental protection requirements, while reducing the oxidation of the workpiece, the workpiece heating quality is good; The labor intensity is low, the production cost is reduced, and the workpiece quality and process requirements are good.
Fast And Safe Logistics
30-Day Return & Fast Free Shipping
Founded in 2013, Shandong Yiran Environmental Protection Technology Co., Ltd. is a large-scale manufacturing enterprise integrating industrial furnace technology research and development, production and manufacturing, guidance services and commodity trade.
years of industry experince & 8 years of import and export experience.
Our factory is ISO9001:2015 certified by ACM.
We ensure a stable supply of our products, with some products available for up to 10 years.
Covering the entire process from R&D and design to manufacturing and final delivery.
The through type natural gas forging furnace adopts regenerative structure and regenerative combustion to realize heat circulation. The exhaust gas temperature is low, and it can be heated according to the process requirements according to the larger thermal power, and the oxidation loss is small.
The fan adopts frequency conversion technology to save energy and protect the environment. In the heat preservation stage, the fan speed is greatly reduced, the operating cost is reduced, and the life of the fan is extended; the thermal insulation stage has less firepower, which can save fuel and reduce airflow.
PLC intelligent control system: the furnace temperature is uniform and stable, gas leakage, ignition failure, flameout, abnormal furnace pressure and other abnormal conditions will cut off the gas in an emergency, one button start stop, safe and convenient.

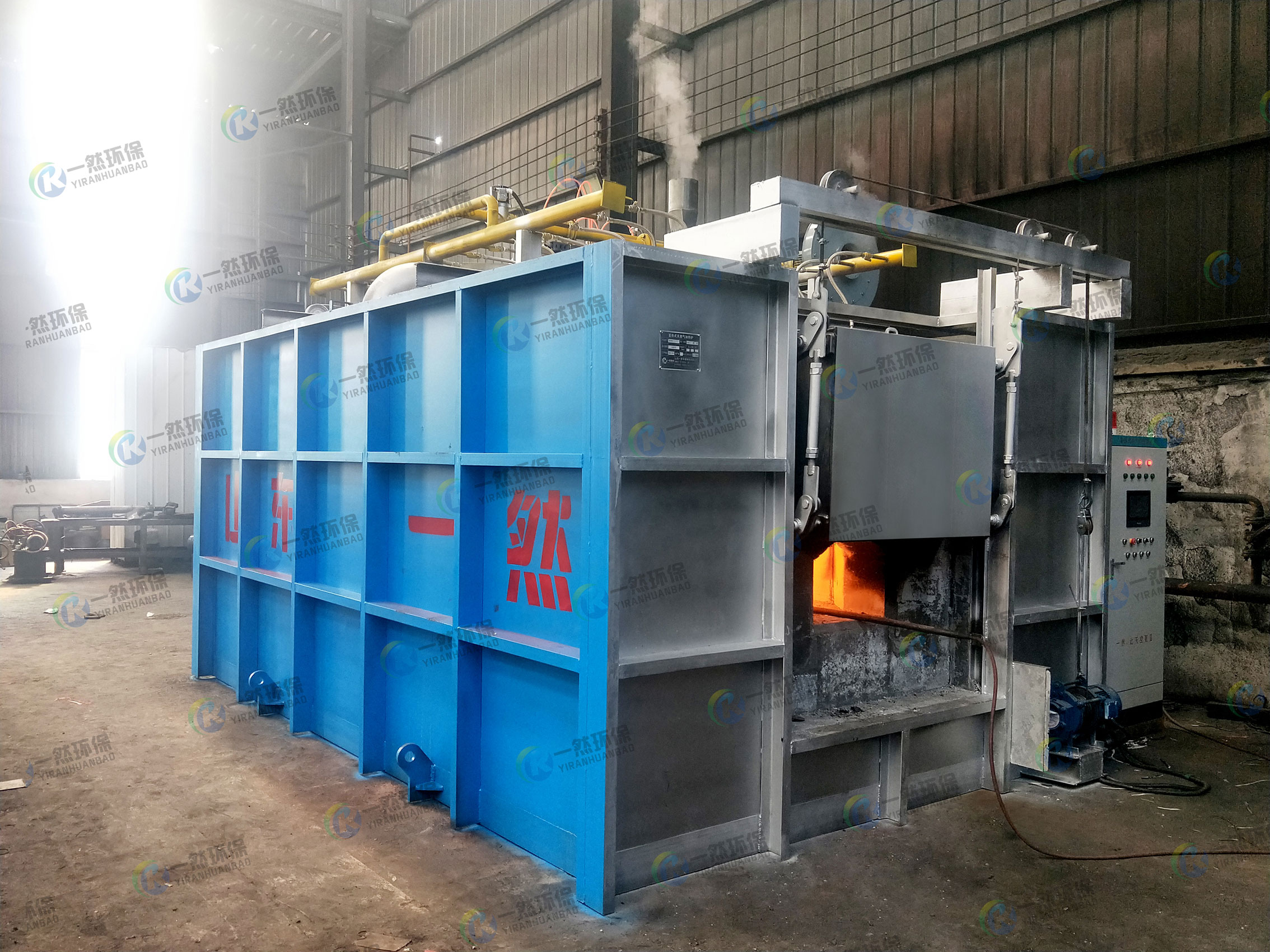

Mechanical pushing can be used to improve productivity; the guide rail lifting furnace door structure is adopted, and the mechanical lever is pressed automatically. Safety devices: gas leakage, unsuccessful ignition, flameout, failure of blowing and induced draft, abnormal furnace pressure and other abnormal conditions will cut off the gas in an emergency; one touch start stop, safe and reliable.
| Calibrated Temperature | Working Dimensions | Furnace Temperature Uniformity | Loading Capacity |
| 1300℃ | 6*5*2.4(m) | ±14℃ | 80T |
| 1300℃ | 9*4*3.5(m) | ±14℃ | 100T |
| 1350℃ | 12*4*3.5(m) | ±15℃ | 300T |
| 1250℃ | 12*3.5*3(m) | ±14℃ | 200T |
| 1200℃ | 3.5*3*1(m) | ±3℃ | 8T |
| 1100℃ | 4*4.2*2.2(m) | ±10℃ | 80T |
| 1100℃ | 8*5*3.4(m) | ±10℃ | 100T |
| 1100℃ | 9*4*3.5(m) | ±10℃ | 150T |
| 1100℃ | 9*5*5.5(m) | ±10℃ | 200T |
| 1100℃ | 14*8*5(m) | ±10℃ | 600T |
