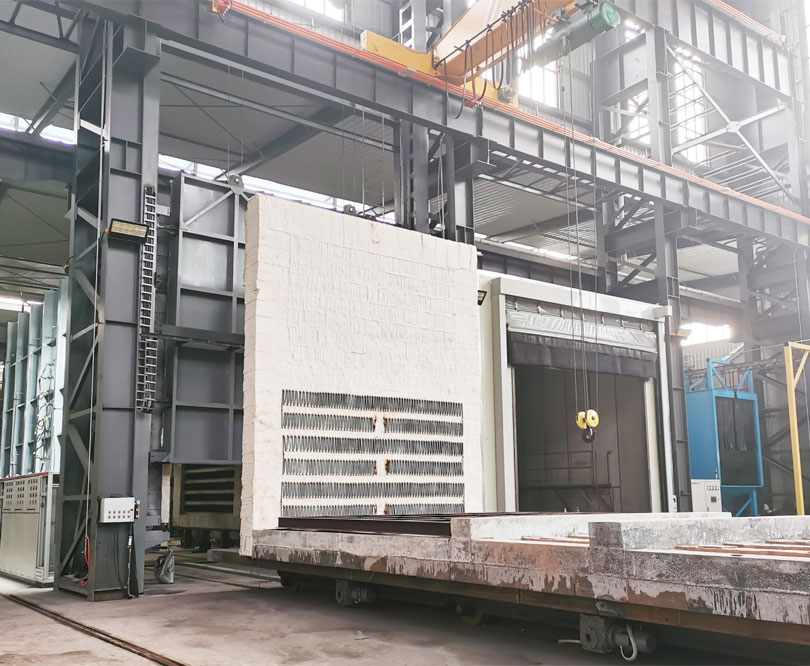

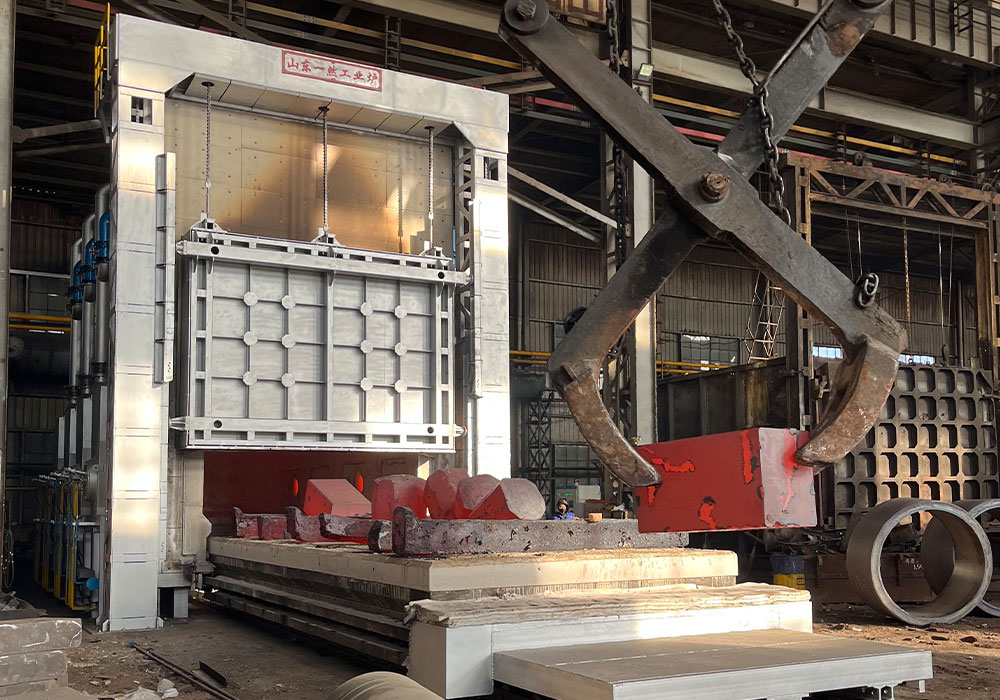

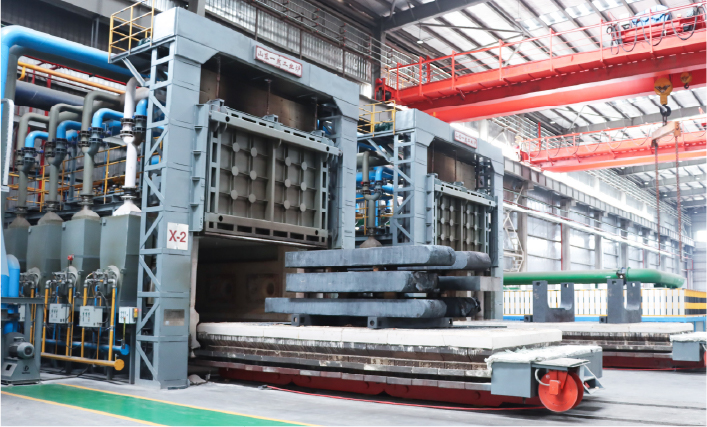

Natural gas high temperature trolley heater: Yiran natural gas high temperature trolley heater is widely used for annealing, normalizing, tempering, heating, surface quenching and other heat treatment processes of large carbon steel and alloy steel parts. The high temperature trolley furnace can be designed directionally according to the user's process requirements. It has the advantages of high heating temperature, good sealing, large furnace loading, uniform temperature, convenient maintenance, and good energy-saving effect.
Fast And Safe Logistics
30-Day Return & Fast Free Shipping
Founded in 2013, Shandong Yiran Environmental Protection Technology Co., Ltd. is a large-scale manufacturing enterprise integrating industrial furnace technology research and development, production and manufacturing, guidance services and commodity trade.
years of industry experince & 8 years of import and export experience.
Our factory is ISO9001:2015 certified by ACM.
We ensure a stable supply of our products, with some products available for up to 10 years.
Covering the entire process from R&D and design to manufacturing and final delivery.
The Mesh Belt Heating Furnace Is Mainly Composed Of The Body Drive System, Cleaning Tank, Temperature Control Device, Etc. The Oil Stain On The Surface Of The Workpiece To Be Cleaned Can Be Cleaned. After Cleaning, The Workpiece Can Be Dried By Large Volume Of Cold Air And Heated For Drying, So That The Workpiece Is Dry Before Tempering.
The Transmission Mode Of Mesh Belt Heating Furnace Is Mainly To Drive The Mesh Belt With The Support Plate At The Bottom Of The Mesh Belt Furnace, And The Mesh Belt Is Evenly Placed On The Support Plate.
The Mesh Belt Heating Furnace Is Equipped With A Circulating Fan. Under The Action Of Strong Wind, The Furnace Temperature Is Uniform Throughout The Hot Air Circulating Duct, Which Can Meet The Process Requirements Of The Workpiece.
The Mesh Belt Is Moved To The Blanking Port, And Is Sealed By The Liquid Sealing Groove Through The Return Channel To Return To The Front Of The Furnace For Circulation. The Workpiece Is Placed On The Mesh Belt And Heated Through The Furnace In A Relatively Static And Stable Manner. The Heated Workpiece Is Operated By The Stepless Speed Regulating Mesh Belt To Control That The Heated Workpiece Is Automatically Sent To The Quenching Oil Tank Through The Blanking Portal Along With The Mesh Belt. The Cooling Time Of The Workpiece In The Oil Tank Can Be Adjusted To Change The Speed Of Lifting The Mesh Belt. The Quenching Process Can Be Improved By Adjusting The Speed Of Forgetting The Belt For Large Or Small Workpieces.
| Calibrated Temperature | Working Dimensions | Furnace Temperature Uniformity | Loading Capacity |
| 1300℃ | 6*5*2.4(m) | ±14℃ | 80T |
| 1300℃ | 9*4*3.5(m) | ±14℃ | 100T |
| 1350℃ | 12*4*3.5(m) | ±15℃ | 300T |
| 1250℃ | 12*3.5*3(m) | ±14℃ | 200T |
| 1200℃ | 3.5*3*1(m) | ±3℃ | 8T |
| 1100℃ | 4*4.2*2.2(m) | ±10℃ | 80T |
| 1100℃ | 8*5*3.4(m) | ±10℃ | 100T |
| 1100℃ | 9*4*3.5(m) | ±10℃ | 150T |
| 1100℃ | 9*5*5.5(m) | ±10℃ | 200T |
| 1100℃ | 14*8*5(m) | ±10℃ | 600T |
Natural gas high temperature trolley heater: Yiran natural gas high temperature trolley heater is widely used for annealing, normalizing, tempering, heating, surface quenching and other heat treatment processes of large carbon steel and alloy steel parts. The high temperature trolley furnace can be designed directionally according to the user's process requirements. It has the advantages of high heating temperature, good sealing, large furnace loading, uniform temperature, convenient maintenance, and good energy-saving effect.

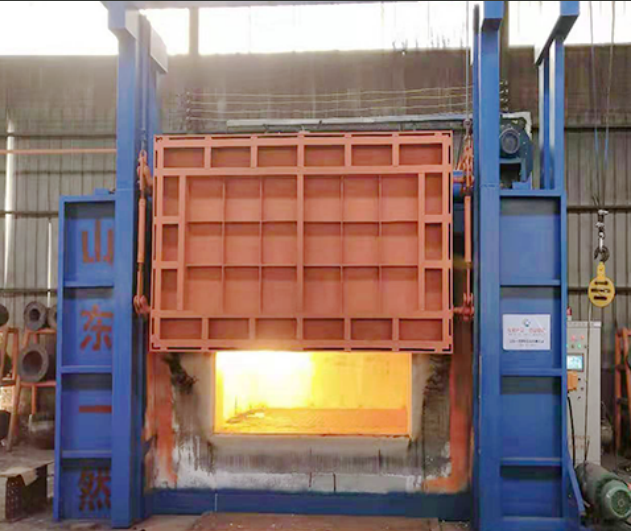

Shandong Yiran natural gas heat treatment furnace adopts full fiber structure, with good thermal insulation performance, light weight and long service life Long life, high intelligence, simple operation and easy maintenance. All fiber natural gas heat treatment furnace and ordinary refractory brick It can save more than 30% energy, and has the characteristics of light weight. Compared with ordinary bricks, it can greatly reduce the amount of steel.
