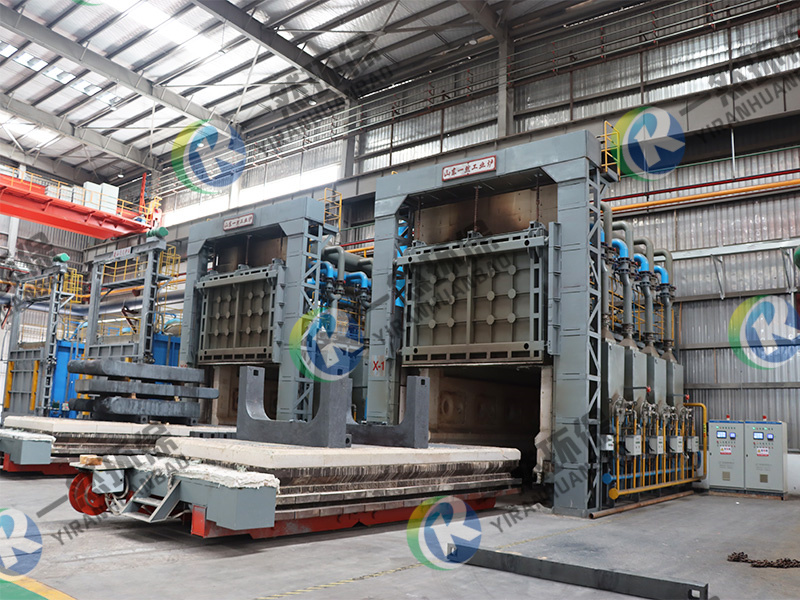

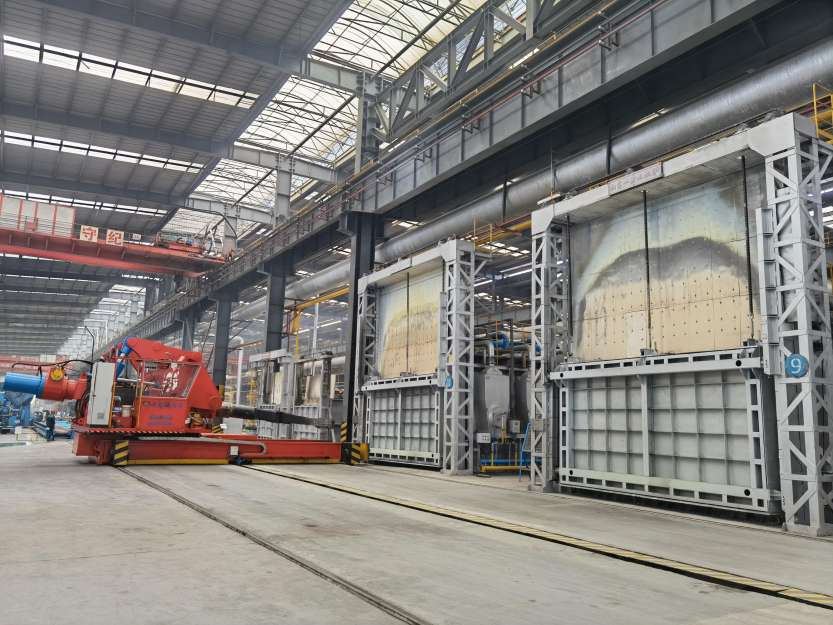

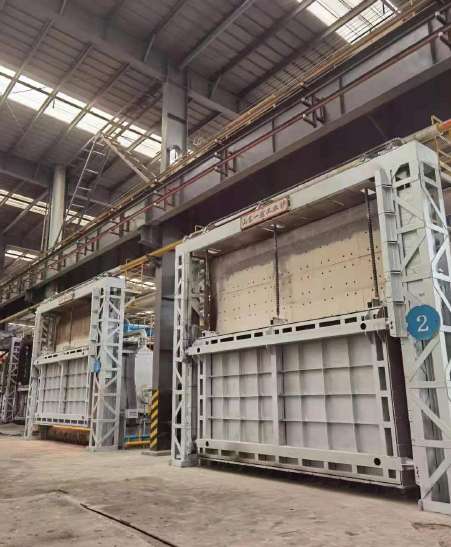

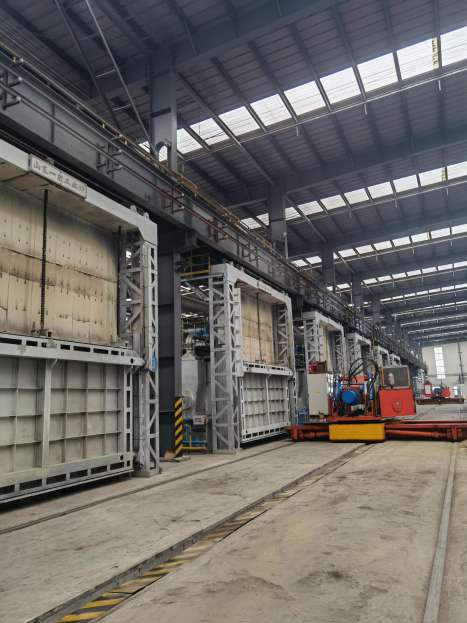

Yiran natural gas chamber forging heating furnace is characterized by energy conservation, environmental protection, safety, reliability, long service life and high cost performance. Yiran environmental protection chamber type forging heating furnace has adopted wall regenerative combustion technology, flue gas waste heat recovery, and pulse dispersion combustion technology to effectively reduce the exhaust gas temperature, with remarkable energy - saving effect.
Fast And Safe Logistics
30-Day Return & Fast Free Shipping
Founded in 2013, Shandong Yiran Environmental Protection Technology Co., Ltd. is a large-scale manufacturing enterprise integrating industrial furnace technology research and development, production and manufacturing, guidance services and commodity trade.
years of industry experince & 8 years of import and export experience.
Our factory is ISO9001:2015 certified by ACM.
We ensure a stable supply of our products, with some products available for up to 10 years.
Covering the entire process from R&D and design to manufacturing and final delivery.

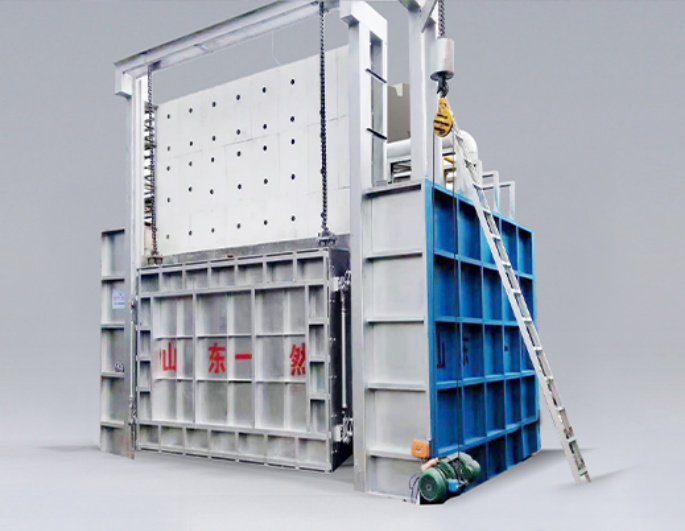

It can be used for metal forging and brazing heating. The natural gas and combustion supporting air are mixed in the burner first after being introduced into the burner, and then sprayed for combustion. The combustion gas heats the workpiece in the furnace and enters the flue, and then is discharged into the atmosphere through the chimney. The furnace is composed of furnace, metal furnace frame, burner, furnace door, flue and flue gate for regulating furnace pressure.
Used for stress relief and heat treatment heating after metal forging, normalizing, annealing and quenching heating, tempering and aging heating.
Used for baking of melt casting molding shell and enamel baking.
Vita est illis semper in fuga uxoresque mercenariae conductae ad tempus ex pacto atque, ut sit species matrimonii, dotis nomine futura coniunx hastam et tabernaculum offert marito, post statum diem si id elegerit discessura, et incredibile est quo ardore apud eos in venerem uterque solvitur sexus.
| Calibrated Temperature | Working Dimensions | Furnace Temperature Uniformity | Loading Capacity |
| 1300℃ | 6*5*2.4(m) | ±14℃ | 80T |
| 1300℃ | 9*4*3.5(m) | ±14℃ | 100T |
| 1350℃ | 12*4*3.5(m) | ±15℃ | 300T |
| 1250℃ | 12*3.5*3(m) | ±14℃ | 200T |
| 1200℃ | 3.5*3*1(m) | ±3℃ | 8T |
| 1100℃ | 4*4.2*2.2(m) | ±10℃ | 80T |
| 1100℃ | 8*5*3.4(m) | ±10℃ | 100T |
| 1100℃ | 9*4*3.5(m) | ±10℃ | 150T |
| 1100℃ | 9*5*5.5(m) | ±10℃ | 200T |
| 1100℃ | 14*8*5(m) | ±10℃ | 600T |
