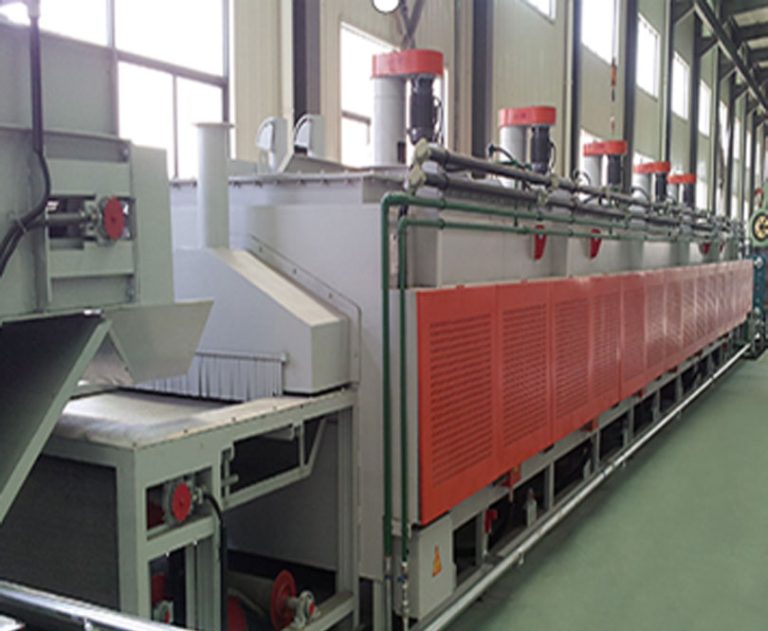

Yiran mesh belt heating furnace is mainly used to conduct continuous bright quenching, cleaning, tempering, thin layer infiltration, nitrocarburizing and other heat treatment processes for steel products such as hardware tools, bearings, standard parts, textile parts, etc. in a controlled atmosphere. The treated parts have the characteristics of smooth surface, no decarburization, uniform hardness, no deformation, etc., and are characterized by easy adjustment of process parameters, high energy conservation and environmental protection efficiency.
Fast And Safe Logistics
30-Day Return & Fast Free Shipping
Founded in 2013, Shandong Yiran Environmental Protection Technology Co., Ltd. is a large-scale manufacturing enterprise integrating industrial furnace technology research and development, production and manufacturing, guidance services and commodity trade.
years of industry experince & 8 years of import and export experience.
Our factory is ISO9001:2015 certified by ACM.
We ensure a stable supply of our products, with some products available for up to 10 years.
Covering the entire process from R&D and design to manufacturing and final delivery.
The Mesh Belt Heating Furnace Is Mainly Composed Of The Body Drive System, Cleaning Tank, Temperature Control Device, Etc. The Oil Stain On The Surface Of The Workpiece To Be Cleaned Can Be Cleaned. After Cleaning, The Workpiece Can Be Dried By Large Volume Of Cold Air And Heated For Drying, So That The Workpiece Is Dry Before Tempering.
The Transmission Mode Of Mesh Belt Heating Furnace Is Mainly To Drive The Mesh Belt With The Support Plate At The Bottom Of The Mesh Belt Furnace, And The Mesh Belt Is Evenly Placed On The Support Plate.
The Mesh Belt Heating Furnace Is Equipped With A Circulating Fan. Under The Action Of Strong Wind, The Furnace Temperature Is Uniform Throughout The Hot Air Circulating Duct, Which Can Meet The Process Requirements Of The Workpiece.
The Mesh Belt Is Moved To The Blanking Port, And Is Sealed By The Liquid Sealing Groove Through The Return Channel To Return To The Front Of The Furnace For Circulation. The Workpiece Is Placed On The Mesh Belt And Heated Through The Furnace In A Relatively Static And Stable Manner. The Heated Workpiece Is Operated By The Stepless Speed Regulating Mesh Belt To Control That The Heated Workpiece Is Automatically Sent To The Quenching Oil Tank Through The Blanking Portal Along With The Mesh Belt. The Cooling Time Of The Workpiece In The Oil Tank Can Be Adjusted To Change The Speed Of Lifting The Mesh Belt. The Quenching Process Can Be Improved By Adjusting The Speed Of Forgetting The Belt For Large Or Small Workpieces.
| Calibrated temperature | 1100℃ | Rated Temperature |
| Working size | 14000x8000x5000mmm | Working Dimensions |
| Furnace Temperature Uniformity | 10% | Temperature Uniformity |
| Loading Capacity | 600T | Loading Capacity |
Bell type tempering furnace: it can be used for normalizing, quenching, tempering and other heat treatment of metal materials and parts. It is famous for its energy conservation, practicality and novelty.
Trolley type forging heating furnace: Yiran environment-friendly natural gas trolley type resistance furnace adopts full fiber lining, fully sealed trolley type furnace body, PLC intelligent control of furnace temperature and pressure, computer + intelligent temperature control instrument + manual three-stage temperature control mode, with low energy consumption and high stability.
Box type resistance furnace: the shell of the box type resistance furnace is made of high-quality cold-rolled steel plate, the surface is treated by spraying technology, and the furnace door is a full door structure with flexible opening and closing.
